HANVY 8 feet 500 mm Log Diameter Spindleless Veneer Peeling Line

FOB Reference Price:Get Latest Price
$60,000.00 - $100,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
HXQ2700
Samples:
$200,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HANVY
Voltage:
220/380v/415V or others
Dimension(L*W*H):
5200x2500x1850mm
Certification:
CE ISO9001
Power (kW):
100
Weight (KG):
500000 kg
Key Selling Points:
Automatic
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, United States, Viet Nam, Indonesia, Malaysia, Argentina
Showroom Location:
Egypt, Turkey, United States, Viet Nam, Indonesia, Argentina
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
PLC
Name:
veneer peeling line
Max.rotary peeling length:
2600mm
Max.rotary peeling dia.:
500mm
Application:
Making plywood board
Function:
veneer peeling
control system:

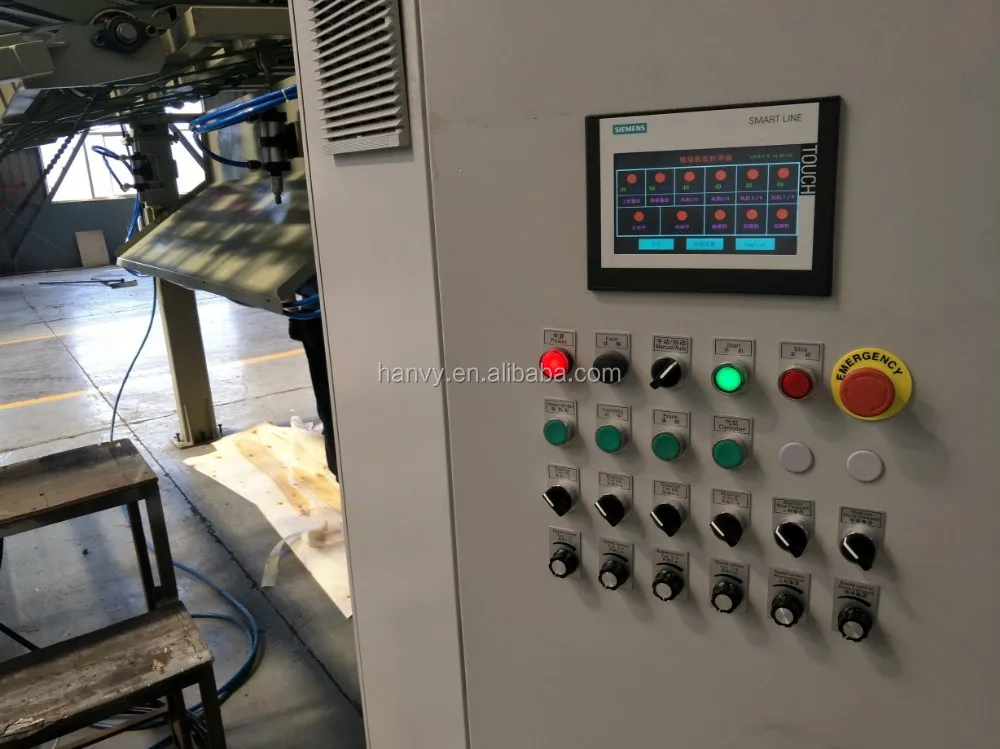

PLC with touch screen
Color:
light grey or customized
Delivery time:
within 50days after deposit
Weight:
13500kg
Power(W):
52kw
Type:
veneer machine
Applicable Industries:
plywood factory
Warranty:
One Year
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy package,usually use containers
Veneer peeling line
Port
Qingdao Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Peeling line
Product Application-Veneer Peeling Line
Hanvy Machinery,is the original and professional manufacturer for plywood production machinery,we can supply you full wood veneer
peeling line for plywood production.
This veneer spindle less peeling line is very popular in veneer and plywood industry worldwide.

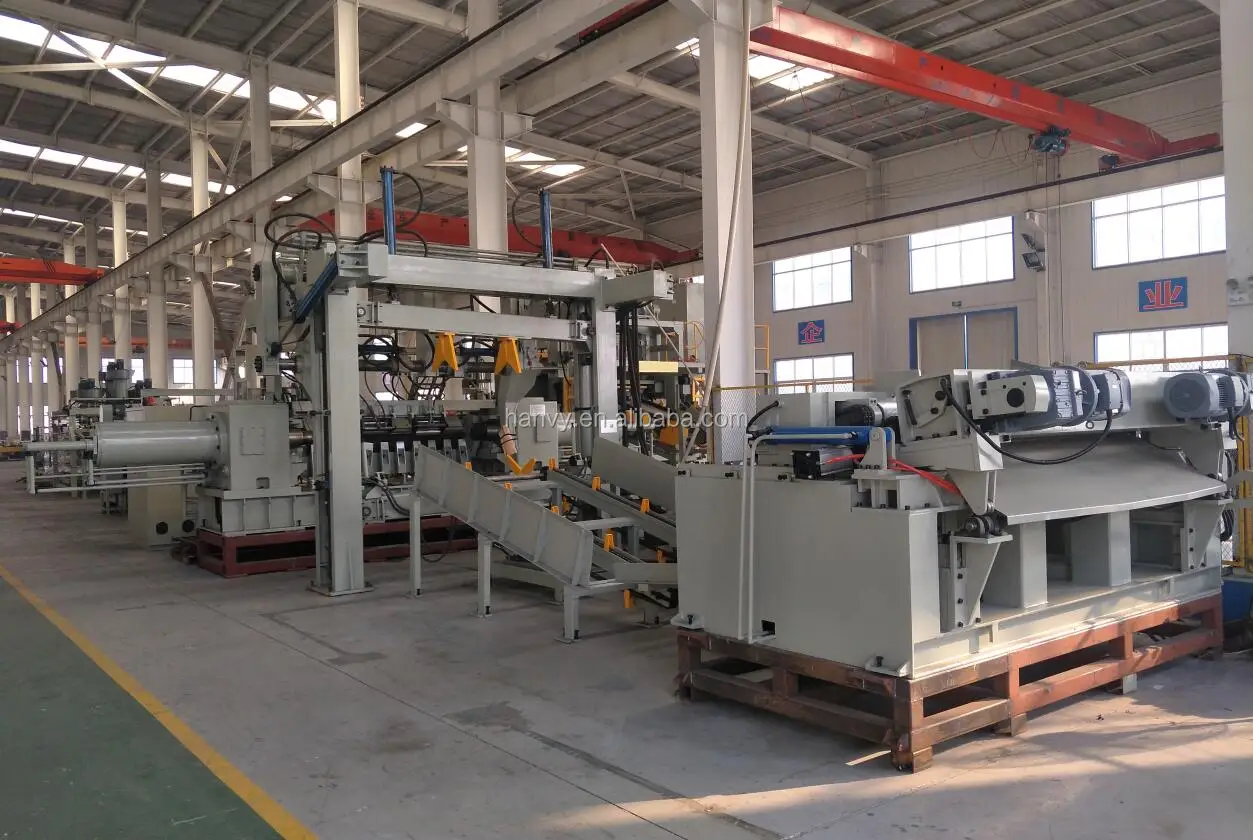

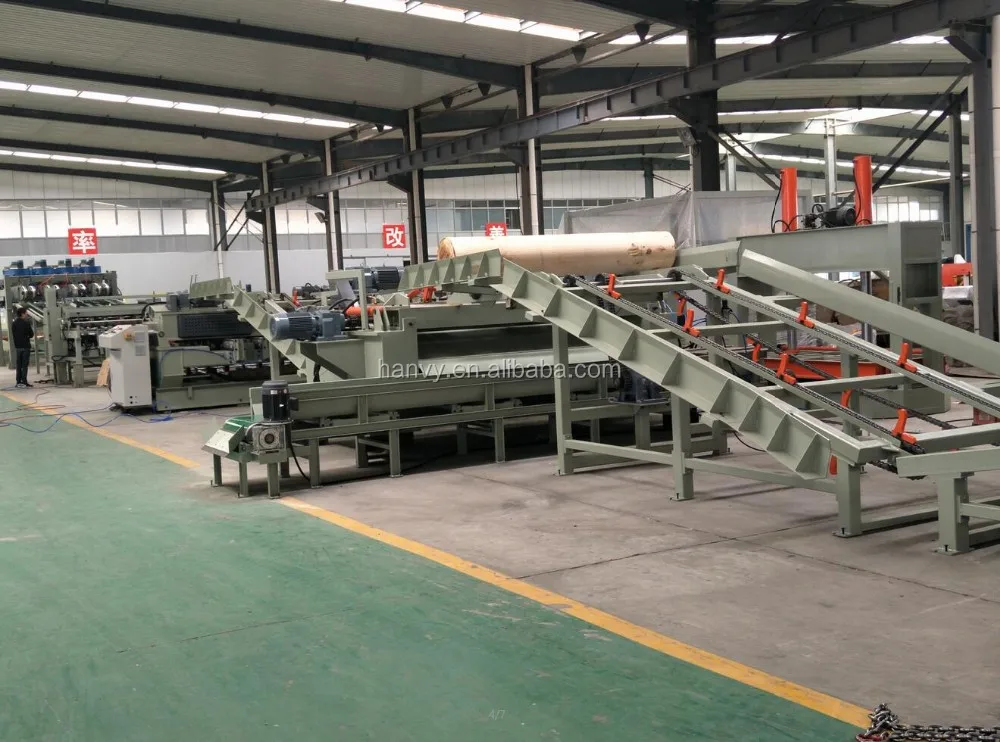

The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
Product Description

Hanvy 8FT Spindleless Veneer Peeling Line For Plywood Factory

The Complete veneer peeling line is made of four main parts,

1. LOG DEBARKER

2.VENEER PEELING MACHINE

3. CNC VENEER ROTARY CLIPPER

4.AUTOMATIC VENEER STACKER(Option),Manual Veneer Collecting is option.

LOG DEBARKER

This part is made of log charger, waste conveyor and log debarker.

This veneer peeling line could process max.log diameter at 500mm, Log length at 1400mm.

Double ends of log has the same diameter.

VENEER PEELER
Veneer peeling line---veneer peeler

Veneer peeler is the core machines of veneer peeling line. This is a high speed spindle less veneer peeler, which could process max.core log diameter at 480 mm , log length at 1400 - 2700 mm .Veneer thickness at 0.5 - 3.0 mm
Product Name
Hanvy 8FT Spindleless Veneer Peeling Line For Plywood Factory
Peeling Type
Spindeless type
Tree Type
Birch,Poplar,Pine,Eucalyptus etc.
Max.log dia.
500mm
Veneer thickness
0.5-3.0mm
Veneer width and length
4*8ft ,4*4ft
Collecting type
Automatic veneer stacker or manual
Estimated veneer capacity
3cbm/h
VENEER CLIPPER
Veneer peeling line-CNC veneer rotary clipper
To cut the veneers at different widths.
The min,width is 200 mm.
Three knives, 100 m/min ,Yaskawa servo,with feeding belt conveyor and out feeding conveyor.
Model
HJG2700
Overall dimension
6300x3835x1677mm
Max.working width
2650mm
Weight
4300kg
Cutting speed
100m/min
Cutter motor
Yaskawa servo motor
Motor power
12kw
AUTOMATIC STACKER
Veneer Peeling Line - automatic veneer stacker
Vac-sorb working type.
3 kw motor power.
Siemens control system.
With one bin or multiple bins.
To save more labor cost.
Model
HDD1126/4-1
Max.stack height
1000mm
Working width
2200-2600mm
Motor
25.8kw
veneer thickness
1.0-3.0mm
System
Siemens
Speed
140m/min
Veneer Peeling Line- Veneer dryer
This machine is main machine for plywood production,it's used for peeled veneer drying.
It includes mesh,roller and mesh & roller type,can be customized according to your requirements.
It's high efficiency,saving energy and improving the veneer quality.
Our Certifications
Our buyer


We have buyers in USA, Russia, Turkey,Poland,Ukraine,Ethiopia,Ghana ,Egypt,Indonesia,Vietnam and Malaysia etc.Most of them are plywood manufacturers.

We have plenty of experience in this area,and we shall be glad to share our successful cases with you.
