Hanvy Plywood Machinery - Veneer Glue Spreader plywood Cold Press and plywood Hot Press

FOB Reference Price:Get Latest Price
$10,000.00 - $100,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
MH61-1500Z HYY214*8/5B HY214*8/6A-15
Samples:
$140,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 40 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HANVY
Voltage:
220/380v/415V or others, 380v/440v or others
Dimension(L*W*H):
2910x2978x1600mm
Certification:
CE ISO
Weight (KG):
3290 kg
Applicable Industries:
plywood factory
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Key Selling Points:
High-accuracy
After Warranty Service:
Field maintenance and repair service
Local Service Location:
Egypt, Turkey, United States, Brazil, Indonesia, Russia, Malaysia, Ukraine
Showroom Location:
Egypt, Turkey, United States, Brazil, Russia, Ukraine
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
PLC
Name:
Hanvy plywood cold press and plywood hot press
Machine name-1:
Veneer glue spreader-8ft width
Machine name-2:
Plywood Cold Press-500ton
Machine name-3:
Plywood Hot Press-600ton
Estimated plywood capacity per year:
10000cbm
Color:
light grey or customized
Delivery time:
within 50days after deposit
Material:
dry veneers
Type:
Plywood hot press machine
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Hanvy Plywood Machinery - Veneer Glue Spreader plywood Cold Press and plywood Hot Press
Seaworthy package,a 20ft container
Port
Qingdao/Ningbo/Shanghai and any based port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 40 60 90 To be negotiated
Video Description

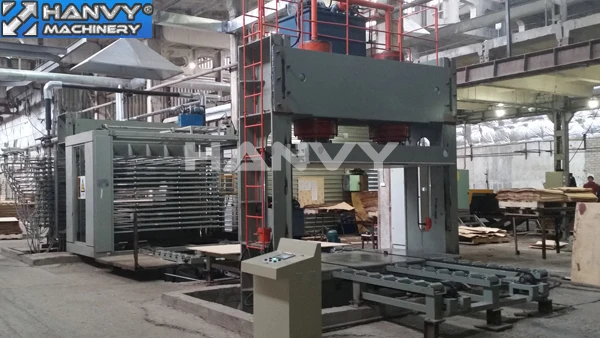

Gluing&Pressing line
The plywood pressing line is made of three main machines, veneer glue spreader. plywood cold press and plywood hot press.
Some more auxiliary tools needs,such as ground roller conveyor, hydraulic table lifter, cooling rack etc.
Glue spreader--- 4 rollers 2700 mm working width.
Cold Press--- 1270 x 2700 mm ,500 ton pressure
Hot Press---1270 x 2700 mm , 15 daylights , 600 ton - 800 ton pressure.
Product Description

Product Application/Hanvy Plywood Machinery Veneer Glue Spreader

Veneer Gluing and Plywood Pressing Line is made of three main machines,glue spreader,cold press and hot press.

Also some auxilary equipments,such as scissor lift,ground rollers etc.

SPECIFICATIONS FOR MH62-2700 Heavy Duty Zigzag 8 FEET Veneer Glue Spreader

Roller specification
Coating roller diameter x Length
mm
Φ430x2700
Squeeze roller diameter x Length
mm
Φ292x2700
Max.working thickness
mm
30

Main performance parameters
Coating roller speed
m/min
30/45
Main drive motor
kw
4/
Outlet conveyor motor
kw
0.75
Weight and Dimension
Roller table size
mm
3050 x 1520
Main body size
mm
4110 x 3200 x 1600
Weight
kg
4300

MH62 Heavy Duty Zigzag Veneer Glue Spreader

Usually ,our veneer glue spreader will match three hydraulic scissors,some ground roller and roller drive conveyor.

4-5 workers are enough.

Main Features

1) Iron steel machine body,so strong and relialble

2) High gluing speed to improve

3) Zigzag rollers' layout

4) Gluing roller is made of natural rubber.

5) Gear drive

Plywood Cold Press

Frame steel thickness is 35 mm,very robust design.
Siemens Control System
With inbuilt in feeding conveyor and out feeding conveyor.
1270 x 2700 mm working table size. We could also provide customized size,such as 5 *5 feet and 4 *4 feet etc.
Model:
HYY814X8/5B
Net opening
300-1300mm
Pressure
500T
Cylinder dia.and quantity
Dia.360*2pcs,Dia.80*2pcs
Worling table size
2700X1370mm
Motor power
17.2kw
Stroke
1000mm
weight
17000kg

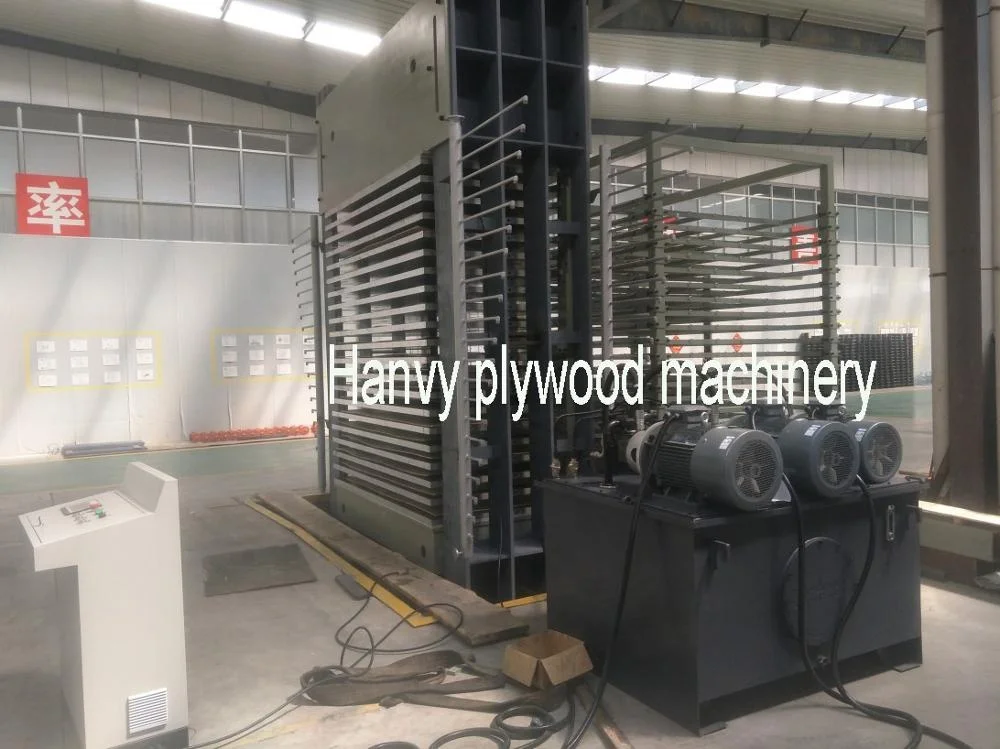

Plywood Hot Press

Model
HY214*8/6A-15
Cylinder
Dia.380mm*2pcs
Dia.180mm*1pc
Pressure
600ton
Max.workingpressure
25Mpa
Hot platen
2700x1300x42mm
Motor power
26kw
Opening
70mm
Overall dimension
5000x1446x5395mm
Layer number
15
Weight
38000kg

OTHER AUXILLARY

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Glue spreader work video

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

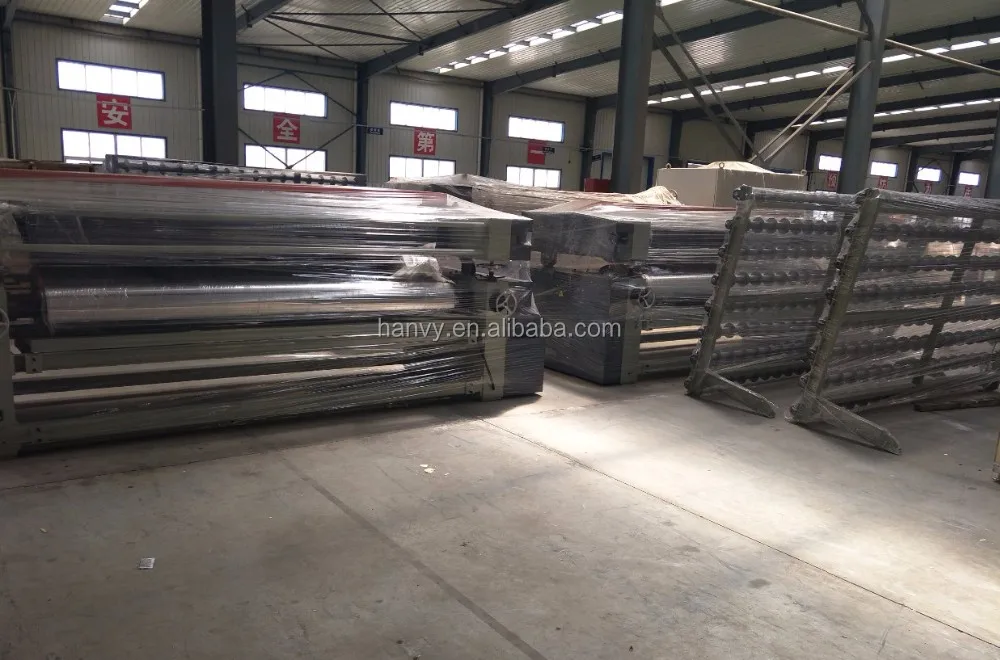

Packing & Delivery
Packaging
Size
4110(L) * 3200 (W) * 1600 (D)
Weight
4.2T



Packaging Details
Pack in shrink film,and ship in a 20ft container
Related Products

Log debarker

Spindleless veneer peeler

CNC veneer rotary clipper

Automatic veneer stacker

Roller type veneer dyer for core veneer

Net type veneer dryer for face an bottom veneers

We could also provide roller and net combined veneer dryer

Automatic plywood DD saw and wide belt sander
